Thermal imaging camera + tracking device rental 1 week
Thermal imaging camera + tracking device rental 1 week
Couldn't load pickup availability
Main features of the wall scanner:
locating power lines
detection of metal and wood
locating plastic pipes
Main features of the thermal imaging camera:
Measuring range -10 °C to +400 °C
high-resolution infrared images
picture-in-picture technology

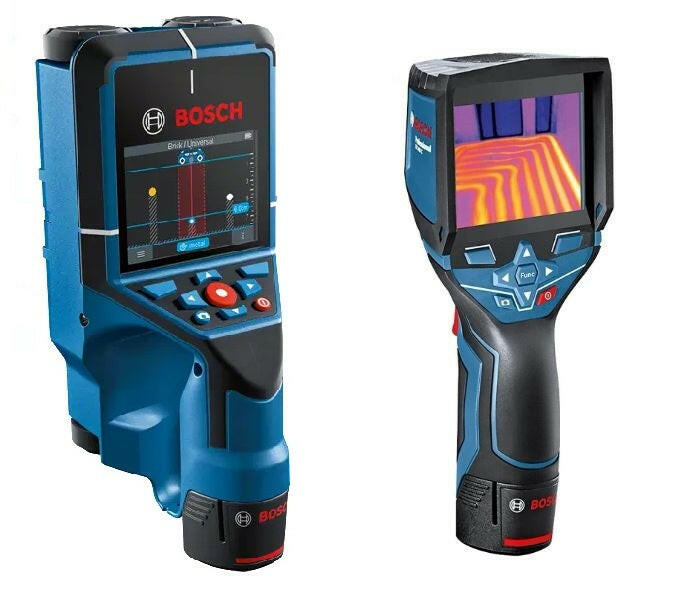

Rent a tracking device + thermal imaging camera :
The D-tect 120 Professional locator is an intuitive radar scanner that is indispensable when searching for objects in walls, ceilings and floors. Depending on the material and condition of the surface, metal objects, wooden beams, plastic pipes, lines and cables can be detected. The thermal imaging camera gives you an overview of the temperature distribution.

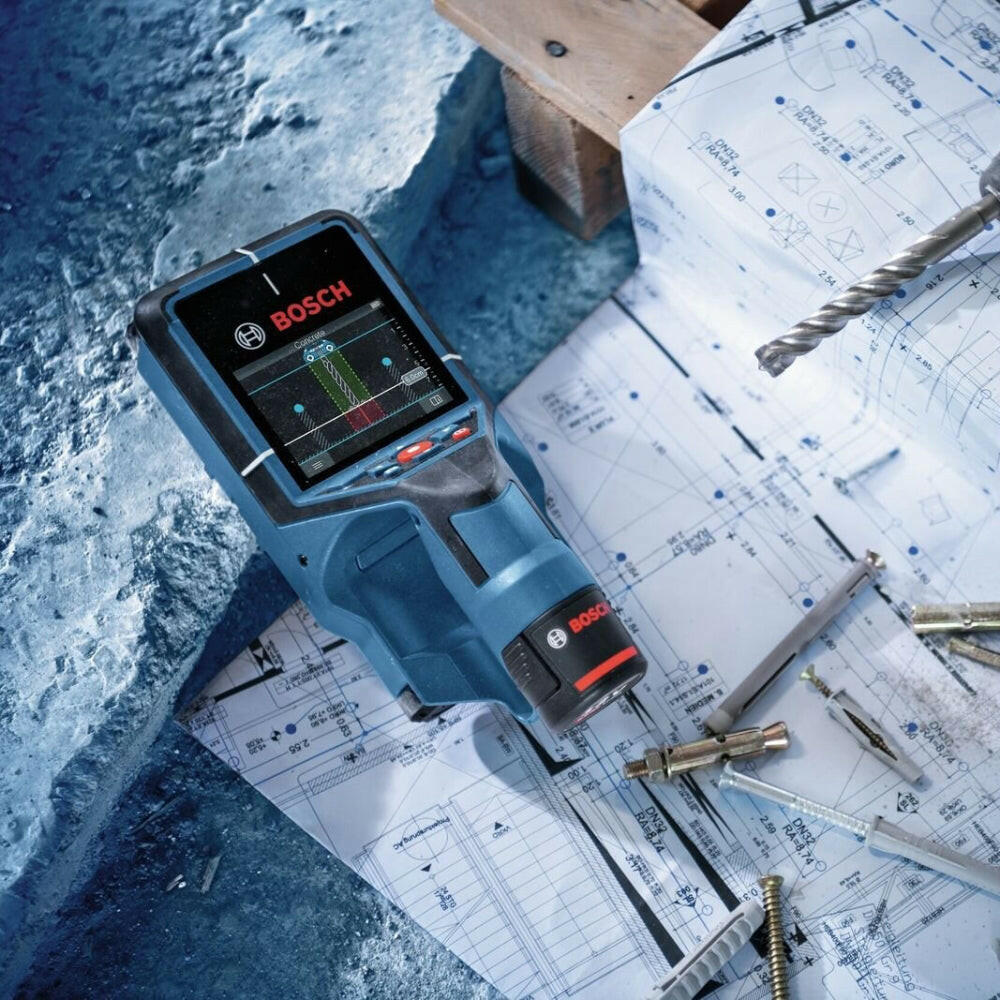

Wallscanner Highlights:
BOSCH RADAR TECHNOLOGY: Radar technology allows the detection of objects in walls, ceilings and floors at depths of up to 20 cm : (non-)live cables, water-bearing/empty plastic pipes, (non-)magnetic metal, wooden parts

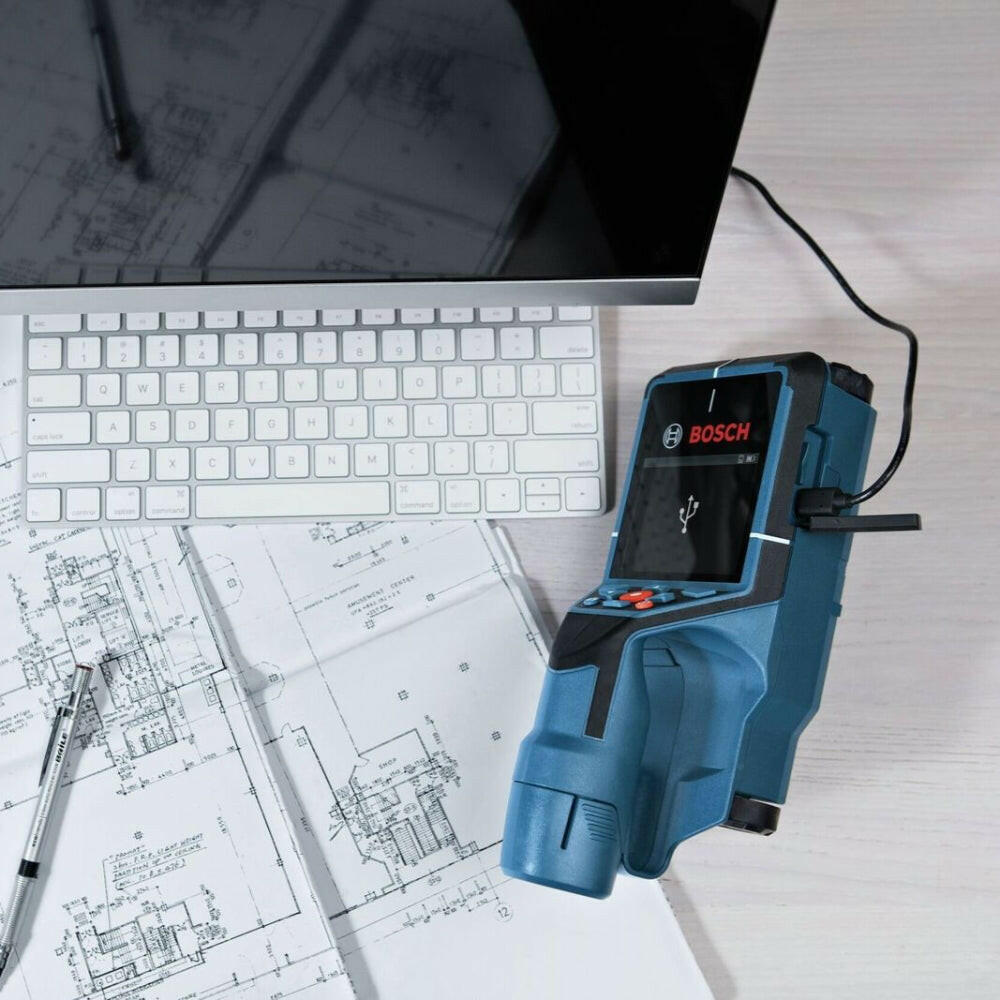

EASY DOCUMENTATION: The screenshot function supports quick and easy documentation of the tracking results, which can be downloaded via USB-C and Micro SD card.
INTUITIVE OPERATION: For precision, greater safety and a clear representation of detected objects. Four different views offer flexibility for the best results in every situation.
Thermal imaging camera highlights:
WIDE TEMPERATURE RANGE: The thermal imaging camera can measure temperatures from -10 °C to +400 °C with an accuracy of ±3 °C
HIGH IMAGE QUALITY: The GTC 400 C thermal imaging camera delivers high-resolution thermal images for easy detection of temperature differences with a resolution of 160 x 120 (19,200 pixels)
INTUITIVE OPERATION: The thermal images are easy to understand and all important functions are available with one click. The intelligent picture-in-picture function makes it easier to locate the measurement

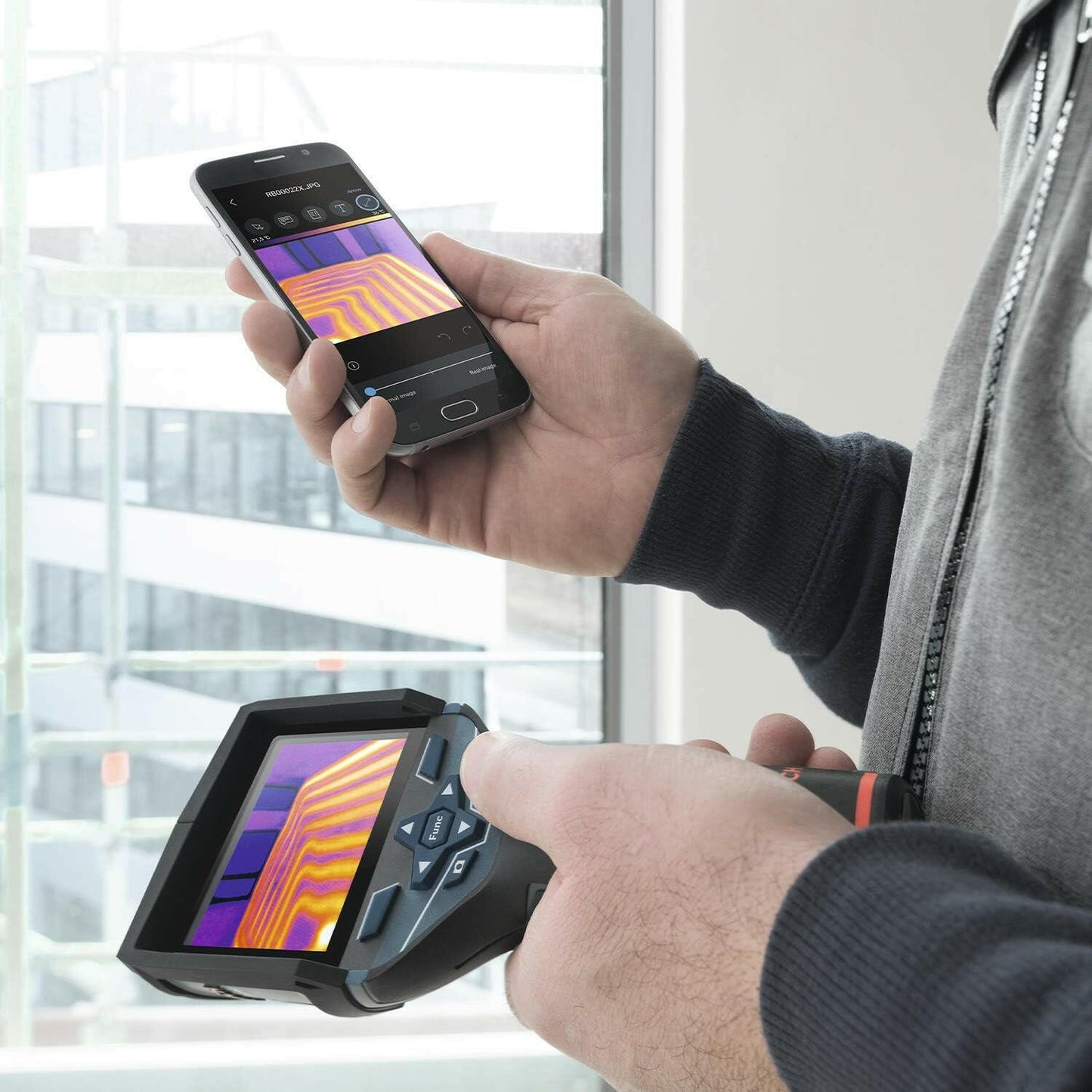

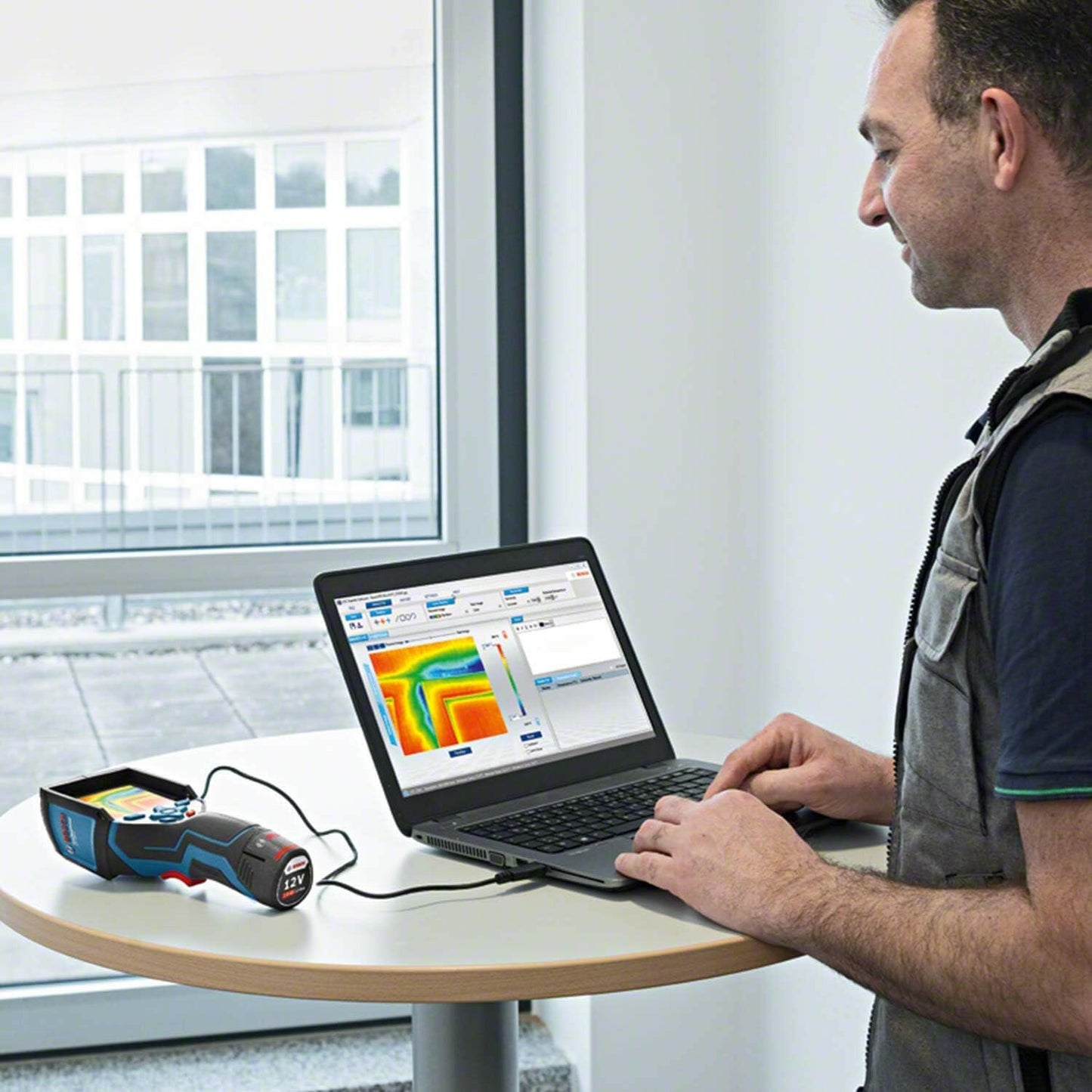

EASY DATA TRANSFER: With the Bosch ThermalOn app, thermal images and measured values can be quickly documented and forwarded as JPEG or PDF files via email, WhatsApp, etc. and you can add notes and to-do lists
Scope:

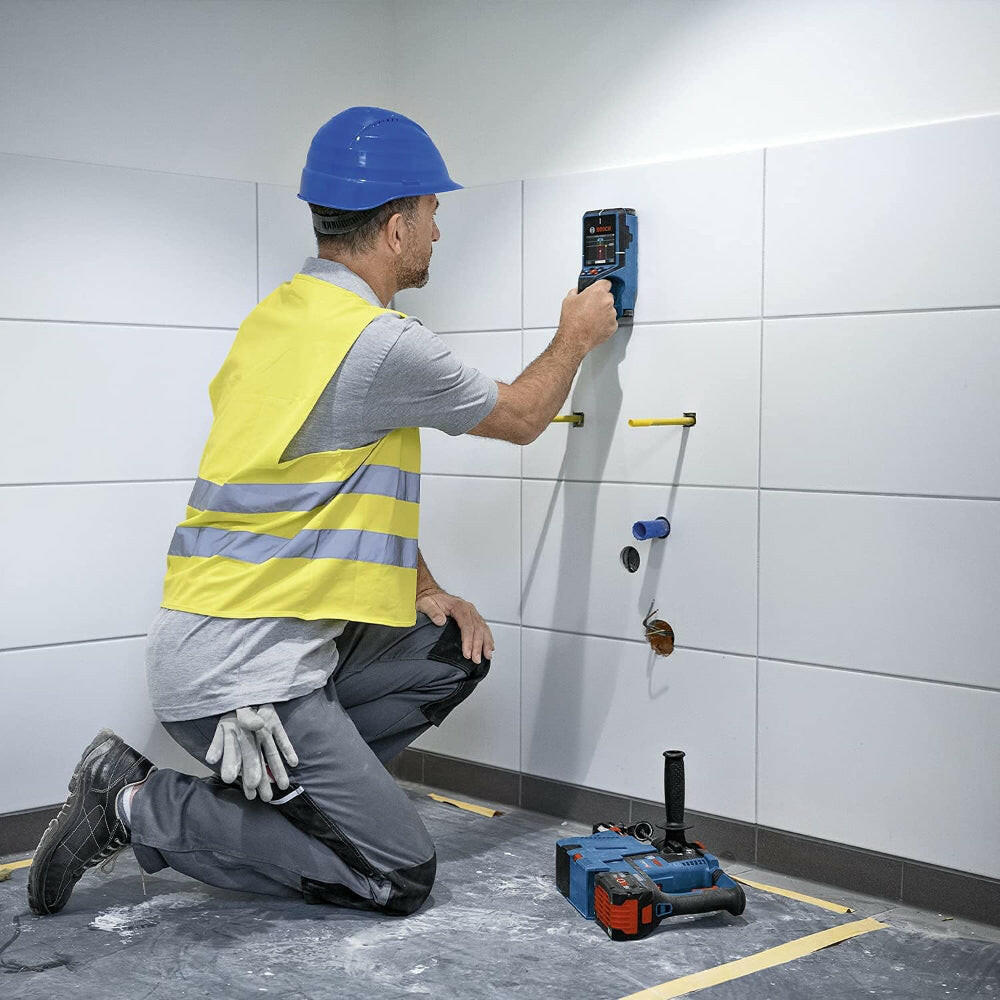

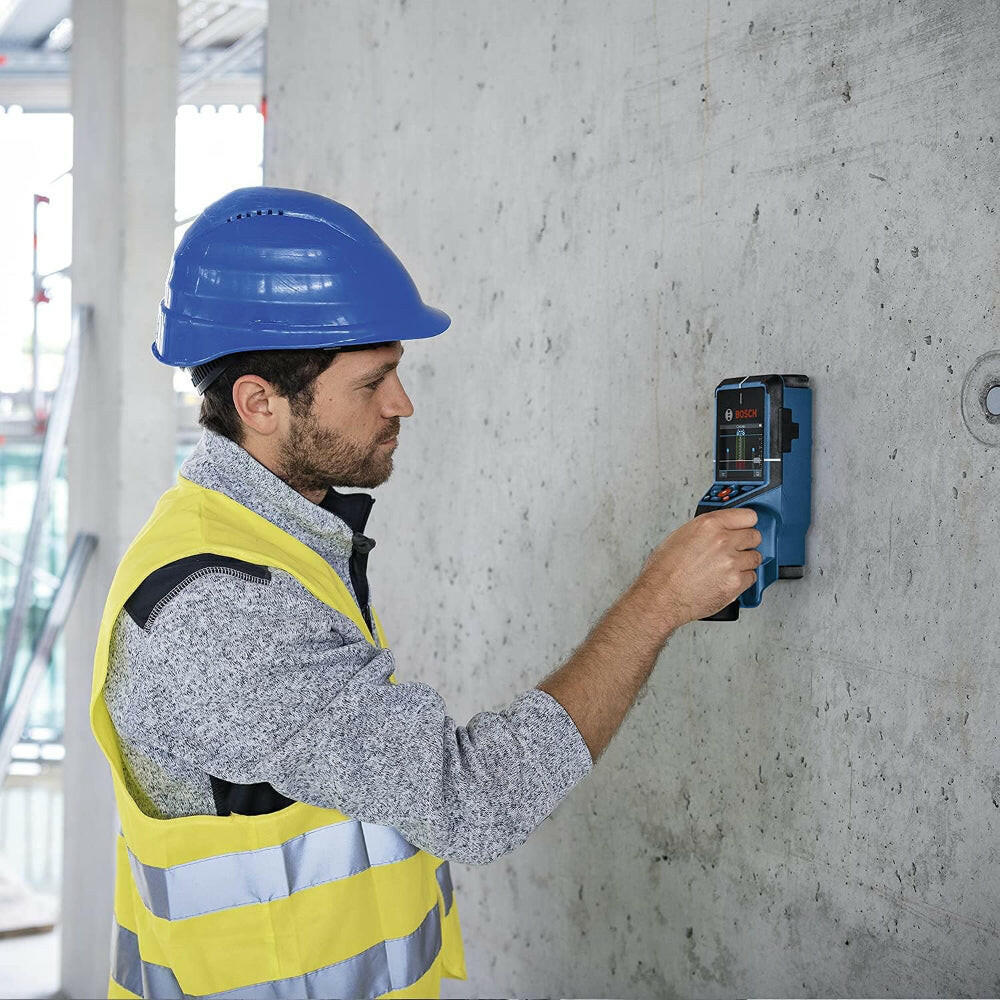

The Wallscanner is suitable for both indoor and outdoor work, ideal for locating objects, protecting against damage during drilling and measuring concrete cover . It can also detect leaks inside walls.

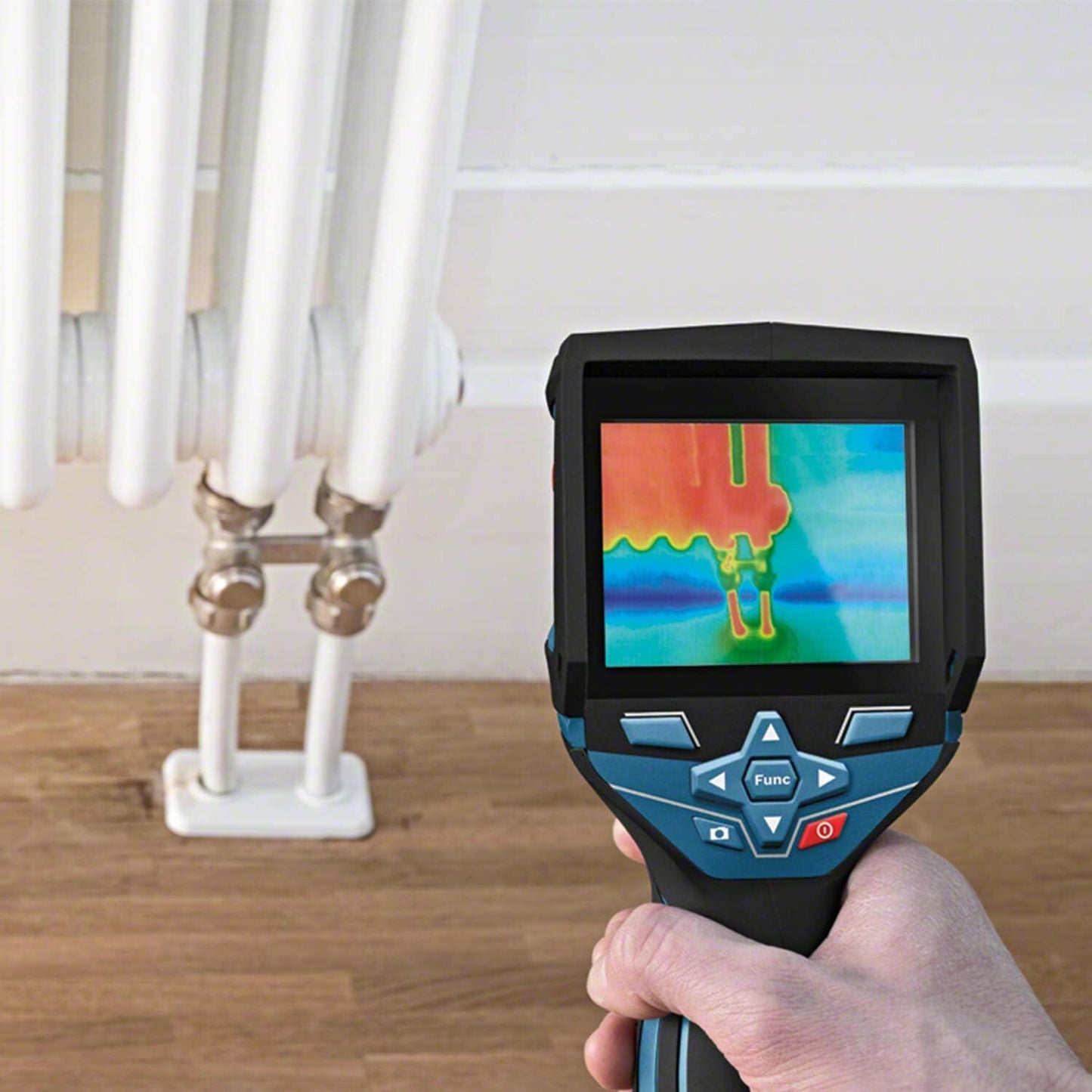

The thermal imaging camera is ideal for checking insulation on windows and doors and heating systems, heating pipes, underfloor heating, checking heat flow and looking for overheated parts.
TECHNICAL DATA
TECHNICAL DATA
Thermal imaging camera BOSCH GTC 400 C Professional:
- Measuring range: -10 °C to +400 °C
- Measurement accuracy IR: ± 3.0 °C*
- Thermal sensitivity (NETD): <50 mK
- IR sensor size: 160x120 px
- Number of measuring points: 19,200
- Field of view (FOV): 53x43 °
- Image memory (number of images): 500
- Storage type: internal storage
- Data transfer: MicroUSB, WLAN
- Display size: 3.5"
- Focus distance, minimum: 0.3 m
You can find the product data sheet here .
Wall scanner BOSCH D-tect 200 C Professional
- Bosch radar technology: yes
- Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, empty plastic pipes, water-carrying plastic pipes, wooden substructures
- Max. detection depth: 200 mm
- Detection depth, dry concrete, max.: 200 mm
- Detection depth, young concrete, max.: 60 mm
- Detection depth, other wall types, max.: 80 mm
- Detection depth, wooden substructures, max. 38 mm
- Accuracy: ± 5 mm*
- Views: Object View, Spot View, Signal View 2D, Signal View
- Wall types: Masonry/Universal, Concrete, Drywall, Surface heating, Young concrete, Long-hole bricks, Vertically perforated bricks
- Documentation via: USB-C, SD card
- Material identification: Live wire, Magnetic metal, Non-magnetic metal, Non-metallic material
- Additional function: Location of leaks, distance measurement
You can find the product data sheet here .
SCOPE OF DELIVERY
SCOPE OF DELIVERY
- thermal imaging camera Bosch GTC 400 C Professional
- charger
- USB cable
- battery
- operating instructions
- Wall scanner Bosch D-tect 200 C Professional
- charger
- USB cable
- battery
- operating instructions
CALCULATION OF THE RENTAL PERIOD
CALCULATION OF THE RENTAL PERIOD
If you have chosen a rental period of one week, you can use your rental device for a full 7 days. The rental period begins with the parcel delivery (first delivery attempt) and ends on the day it is handed in at the post office. The outward and return shipments do not count towards the rental period.
Example: If the rental device is delivered by DHL on Tuesday, take it to the post office or packing station no later than Tuesday of the following week in order to meet the one-week rental period (regardless of the time). If you return the device to the post office or packing station on Wednesday, you have extended the rental period by one day for which you will have to pay.
Further information can be found here: Rental extension
IMPORTANT NOTE ON RENTAL
IMPORTANT NOTE ON RENTAL
You can choose a rental period of one week or two weeks. After the first week, you can always extend the rental period flexibly. Delivery and return shipping are free for you within Germany. You will receive a corresponding return slip from us. For all customers who do not live in Germany, the outward and return shipping costs are included in the shipping costs shown. During the rental period, the renter is responsible for the rented device and is also liable for damage (check whether rented devices are covered by your liability insurance). You will receive telephone support for problems and questions and can request help by email on weekends and public holidays.
